DYNA INSTRUMENTS GMBH

Measure bulk material throughput contactless online

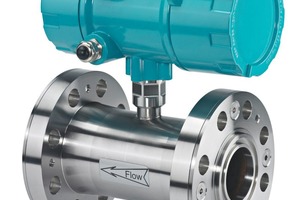

DYNA Instruments offers innovative measuring technology from its own development and production for applications in the bulk handling and particle industry. The DYNAmas, new in the portfolio of the Hamburg company, can be implemented for the online mass flow rate measurement of bulk materials of all kinds. By using the capacitive measuring principle, it allows for the measuring of the throughput in freefall or pneumatic conveying systems. DYNAmas is easy to use, wear-free and maintenance-free due to the non-contact measurement, and provides highly accurate results.

With the DYNAmas, the company now offers four fundamentally different solutions for flow measurement and can thus react even more accurately to the needs of the customers. Since the system separately measures the product concentration and the transport speed and calculates the mass throughput from these results, it is independent of fluctuating solids speeds. The mass throughput can be reliably, precisely and continuously ascertained without disturbing or interrupting operating processes.

The device is simple to calibrate by either filling the sensor tube or using a reference weighing. Due to its small dimensions, it can be easily integrated into existing systems and is suitable for small to very large throughputs. The flow meter is ideal for measuring free-flowing bulk solids. Even conductive products such as coal dust can be reliably measured. The DYNAmas is available for different pipe sizes up to DN200 and is approved for use in ATEX zone 1/21.

//www.dynainstruments.com" target="_blank" >www.dynainstruments.com:www.dynainstruments.com

x

Related articles:

Issue 03/2024 CLAUDIUS PETERS PROJECTS GMBH

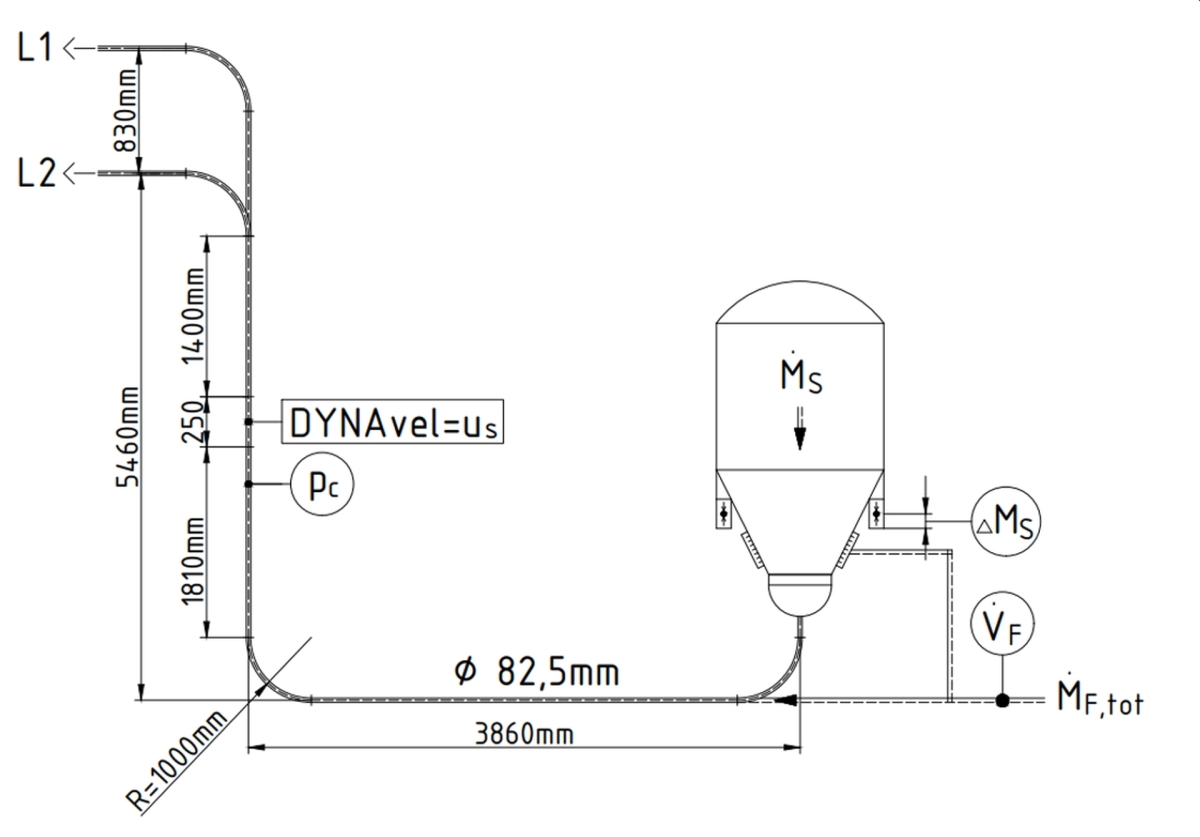

Measurement of the velocity ratio of solids and gas in vertical pneumatic conveyor lines
