KHD combustion chamber – flexible use of alternative fuels in the cement plant

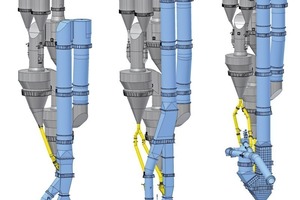

1 PYROCLON calciner series. From left to right: PYROCLON R, PYROCLON R Low NO_x, PYROCLON R CC (Combustion Chamber)

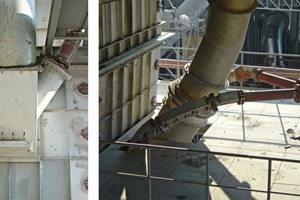

2 PYROBOX, for preheating and mixing the calciner fuel with hot meal

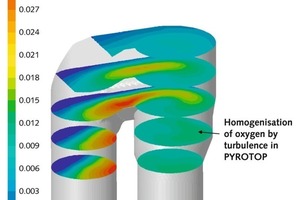

3 PYROTOP compact mixing chamber – CFD study on the elimination of gas strands

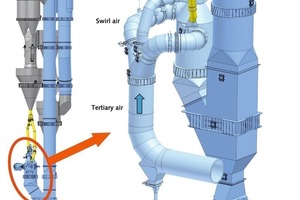

4 PYROCLON R with combustion chamber. Arrangement at calciner and connection of the tertiary air ducts

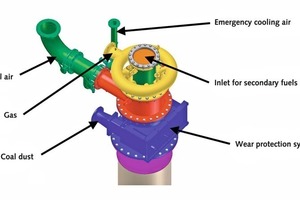

5 Schematic representation of the combustion chamber burners – designed for coal, natural gas and alternative fuels

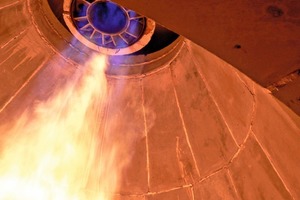

6 Combustion chamber burner – the central channel for alternative fuels and the primary air swirl nozzle are clearly visible

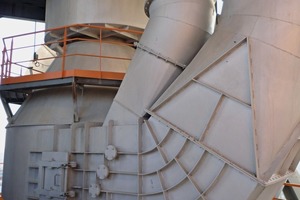

7 Advantages of the combustion chamber at a glance

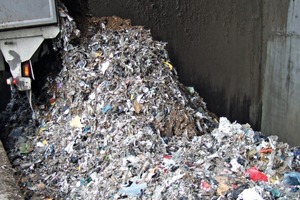

8 Coarsely prepared waste – fuel for the combustion chamber

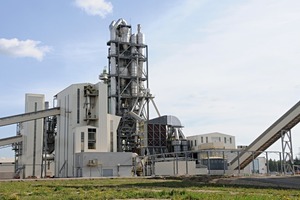

Modern burning technology for cement plants

Modern combustion technology permits extremely flexible reaction to the varying properties of alternative fuels.

In many parts of the world, the use of alternative fuels is a recognized measure for reducing the CO₂ emissions that result from burning primary fuels such as coal, oil and natural gas. Alternative or secondary fuels are the terms used for combustible residues from industrial and commercial manufacturing processes, agricultural production, and sorted municipal refuse. Due to the wide range of possible sources of alternative fuels, there is very great variation in their energy content, ash, moisture content, particle size, form, density etc., so there is no patent solution for their use in a...
