US 2023/0152037 A1

Cement-manufacturing plant and process for producing cement clinker

(22) 30.04.2021

(43) 18.05.2023

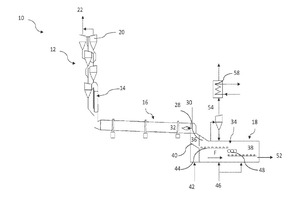

(57) A cement production plant may include a preheater for preheating raw meal, a calciner for calcining the preheated raw meal, and a furnace with a furnace burner for firing the raw meal to form cement clinker. The furnace has a combustion gas inlet for admitting a combustion gas with an oxygen content of 30% to 75% into the furnace. The cement production plant may also include a cooler for cooling the cement clinker. The calciner and the furnace each have at least one respective fuel inlet for admitting at least one fuel into the calciner and the furnace. The calciner and the furnace each have at least one respective inert gas inlet for respectively admitting inert gas into the calciner and the furnace.

(71) thyssenkrupp Industrial Solutions AG, Essen (DE)

(73) thyssenkrupp Industrial Solutions AG, Essen (DE)
