New size for E-Compressors
The successful screw compressor generation Delta Screw from Aerzen gets an addition: With the VM 100 compressor package, the versatile E-Compressor series now comprises seven model variants. Its distinguishing features: the efficient technology for use in the upper volume flow range and the integrated electric acoustic hood fan.

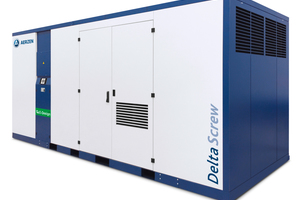

The new compressor type VM100 is designed for a volume flow range from 1500 to 7620 m3/h and covers a maximum differential pressure of 3.5 bar. All in all, the broad product range of E compressors includes 7 sizes in the volume flow range from 330 to 7620 m³/h and drive capacities from 30 to 630 kW.
A special feature of the new model type is the already integrated acoustic hood fan. Another new feature is the space-saving horizontal position of the discharge silencer. Like all E-Compressors of the series, the VM 100 has an acoustic hood with internal supply and exhaust air louvers, which favours the compact design. Flow-optimised intake channels minimise pressure loss significantly. A significant improvement in performance can be achieved by supplying cool outside air directly into the intake filter. Unique is the absolutely oil- and absorbent free compressed air technology of Aerzen. Oil-free operation is certified according to ISO 8573-1/Class 0.
The patented principle of the built-in reflection silencer protects against contamination and ensures process reliability over the entire service life of the system. And the latest addition to the E-Class also impresses with its flexibility. Various equipment options and a comprehensive range of accessories complete the VM 100's operational capability.
Efficiency and performance of the Delta Screw E-Compressors are safely controlled by the AERtronic software. The integrated panel reliably and conveniently monitors the intake, discharge and oil pressure as well as the discharge and oil temperature.
