New possibilities in the generation of process air
The comprehensive Aerzen product range of the rotary lobe compressor series Delta Hybrid will be extended by another series. Since its successful introduction in the year 2010 and after more than 4000 installations, the series of the rotary lobe compressors Delta Hybrid has continuously been strengthened and expanded. With all in all 16 sizes the Delta Hybrid now covers intake volume flows of 110 m³/h up to 9000 m³/h and drive power from 5.5 kW to 400 kW. Due to its wide pressure range of 1500 mbar in overpressure up to -700 mbar in negative pressure, this technology is suitable for a variety of applications for the generation of process air.

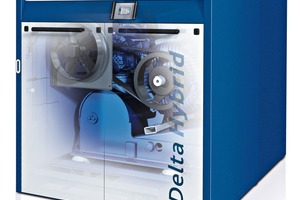

Aerzen offers in the medium volume flow range a closer separation of sizes. Here, the new Delta Hybrid D 52 S covers a volume flow range of 720–3120 m³/h as well as drive power from 11–110 kW. The compact design and the small outer dimensions in this volume flow range are another advantage of the new series and this has a positive effect on the side-by-side installation. In addition, plant operators and system manufacturers may expect reduced investment costs due to the smaller connection nominal diameter DN 150.
The advantages of Delta Hybrid rotary lobe compressors at a glance:
Significantly improved energy-efficiency by energy savings of up to 15 % compared to conventional units
Extended fields of application with differential pressures of 1500 mbar in the overpressure and -700 mbar in negative pressure
Low maintenance and service costs (operation from the front, oil level check from the outside even with the machine in operation, oil change intervals prolonged to 16000 operating hours), reliability and durability
Very high regulating range (25–100 %) with best possible degrees of efficiency also in partial load operation
Patented and robust bearing design (service life 60 000 operating hours Lh10)
Low compressed air discharge temperature thanks to excellent thermal budgets
Compact design and side-by-side installation, low noise levels, suitable for outdoor installation
ATEX certification and class 0-certification according to ISO 8573 for oil-free operation
No use of absorption material in discharge silencer, consequently no contamination of downstream systems
Belt drive for optimal design of the volume flow (automatic belt tension by hinged motor mounting plate ensures low maintenance and high reliability)
Oil pressure lubrication in the oil filter and oil pump reduces energy and maintenance costs (oil filter not necessary)
