University of applied sciences Nuremberg GEORG SIMON OHM

Improving the thermal insulation
properties of thin-bed mortar
Part I: Impact evaluations of various
admixtures on material engineering
parameters

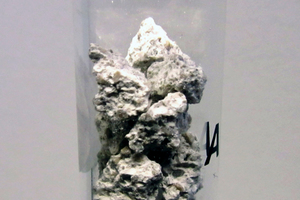

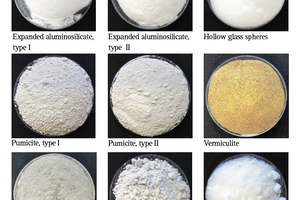

1 A selection of modifiers for thin-bed mortar All authors
1 A selection of modifiers for thin-bed mortar
All authors

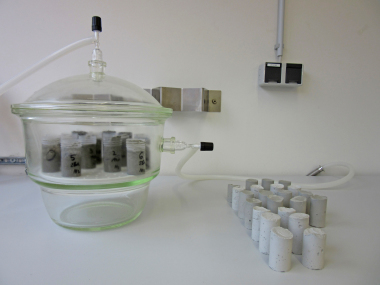

2 Gas adsorption measuring cell for determining the specific surface area (BET) of hardened thin-bed mortar fragments
2 Gas adsorption measuring cell for determining the specific surface area (BET) of hardened thin-bed mortar fragments

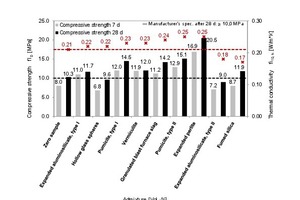

3 Correlation of 7-day and 28-day compressive strength with the corresponding        28-day thermal conductivity values, λ10, dry, of thin-bed mortar samples in dependence on admixture of 10 vol.% modifier compared to the zero sample
3 Correlation of 7-day and 28-day compressive strength with the corresponding        28-day thermal conductivity values, λ10, dry, of thin-bed mortar samples in dependence on admixture of 10 vol.% modifier compared to the zero sample

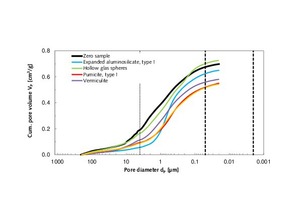

4.1 Cumulative pore volume as a function of pore diameter within the 210 µm to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes
4.1 Cumulative pore volume as a function of pore diameter within the 210 µm
to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes

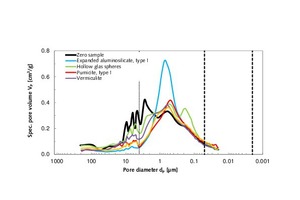

4.2 Specific pore volume as a function of pore diameter within the 210 µm to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes
4.2 Specific pore volume as a function of pore diameter within the 210 µm to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes
5 Mercury porosimetry measuring cell (0.5 cm3 cell volume) filled with thin-bed mortar fragments
5 Mercury porosimetry measuring cell (0.5 cm3 cell volume) filled with thin-bed mortar fragments

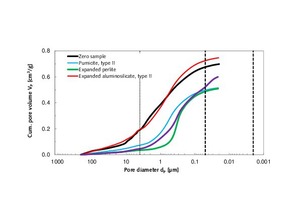

6.1 Cumulative pore volume as a function of pore diameter within the 210 µm to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes
6.1 Cumulative pore volume as a function of pore diameter within the 210 µm to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes

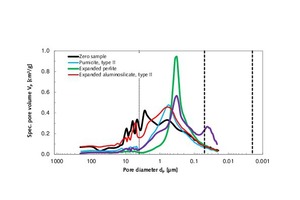

6.2 Specific pore volume as a function of pore diameter within the 210 µm to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes
6.2 Specific pore volume as a function of pore diameter within the 210 µm to 20 nm range for the thin-bed mortar zero sample and modified mortar mixes

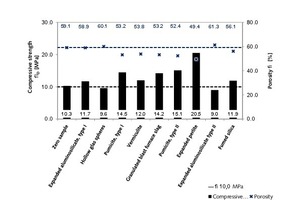

7 Correlation of compressive strength and porosity of hardened thin-bed mortar mixes dosed with 10 vol.% modifying admixtures compared to the zero sample
7 Correlation of compressive strength and porosity of hardened thin-bed mortar mixes dosed with 10 vol.% modifying admixtures compared to the zero sample

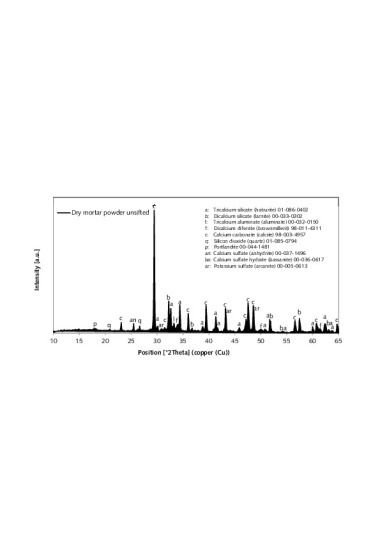

8 Radiographic analyses of a thin-bed mortar zero sample in comparison with a mortar sample containing 10 vol.% expanded perlite, a mortar sample containing 10 vol.% expanded type-II aluminosilicate, and a mortar sample containing 10 vol.% fumed silica at sample ages of 2, 7 and 28 days
8 Radiographic analyses of a thin-bed mortar zero sample in comparison with a mortar sample containing 10 vol.% expanded perlite, a mortar sample containing 10 vol.% expanded type-II aluminosilicate, and a mortar sample containing 10 vol.% fumed silica at sample ages of 2, 7 and 28 days

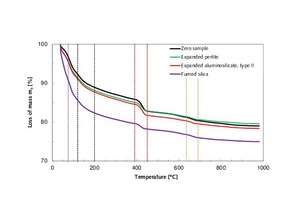

9 Temperature-dependent (TG) loss of mass of a thin-bed mortar zero sample and modified mortar mixes containing 10 vol.% modifying admixture each after a curing time of 28 days in air
9 Temperature-dependent (TG) loss of mass of a thin-bed mortar zero sample and modified mortar mixes containing 10 vol.% modifying admixture each after a curing time of 28 days in air

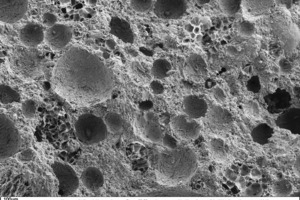

10 SEM micrograph of the fracture face of a thin-bed mortar (zero sample in 50-fold magnification)
10 SEM micrograph of the fracture face of a thin-bed mortar (zero sample in 50-fold magnification)
11 SEM micrograph of the fracture face of a thin-bed mortar (sample containing 10 vol.% fumed silica in 50-fold magnification)
11 SEM micrograph of the fracture face of a thin-bed mortar (sample containing 10 vol.% fumed silica in 50-fold magnification)

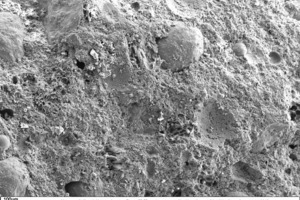

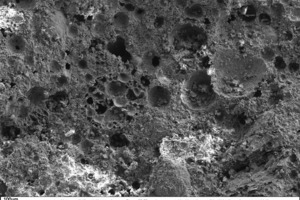

12 SEM micrograph of the fracture face of a thin-bed mortar (sample containing 10 vol.% perlite in 50-fold magnification)
12 SEM micrograph of the fracture face of a thin-bed mortar (sample containing 10 vol.% perlite in 50-fold magnification)

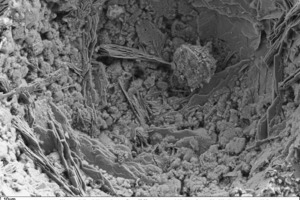

13 SEM micrograph of the fracture face of a thin-bed mortar zero sample in 500-fold magnification
13 SEM micrograph of the fracture face of a thin-bed mortar zero sample in 500-fold magnification

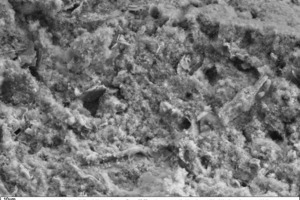

14 SEM micrograph of the fracture face of a thin-bed mortar sample containing 10 vol.% silica, in 1000-fold magnification
14 SEM micrograph of the fracture face of a thin-bed mortar sample containing 10 vol.% silica, in 1000-fold magnification

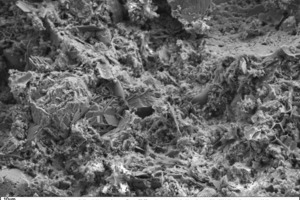

15 SEM micrograph of the fracture face of a thin-bed mortar sample containing 10 vol.% perlite, in 500-fold magnification
15 SEM micrograph of the fracture face of a thin-bed mortar sample containing 10 vol.% perlite, in 500-fold magnification

Monolithic walls erected with an appropriately modified thin-bed mortar should show superior thermal insulation properties. Admixing 10 vol.% fumed silica proved to reduce by 19% the thermal conductivity of a typical thin-bed mortar belonging to compressive strength class M 10. Simultaneously, it also improved the mortar’s compressive strength by nearly 16 %. The investigations also showed that an admixture of expanded perlite can increase the compressive strength by 99 %.

1 Introduction

Thin-bed cement mortar is often used for masoning up such precision-ground, monolithic wall-building materials as bricks, autoclaved aerated concrete units (Ytong), or building blocks of pumicite, expanded clay or sandy limestone [1–3]. The corresponding material engineering parameters are governed by the applicable DIN specifications [4–7], which prescribe, for example, a compressive strength level of βD ≥ 10.0 MPa for class-M 10 mortar after 28 days of curing [8].

According to one market analysis, the thermal conductivity of products in this mortar category has been stagnating...

Find out more in

ZKG 6/2018

Find out more in

ZKG 6/2018

Ressort:  Materials
subscription Content

TEXT Sebastian Schmidt1, Prof. Dr. Dr. Herbert Pöllmann2, Prof. Dr. Wolfgang Krcmar1
1University of Applied Sciences Nuremberg Georg Simon Ohm, Materials Technology Department, Nuremberg/Germany
2Institute of Geosciences and Geography, Mineralogy/Geochemistry Section, Martin-Luther-Universität Halle-Wittenberg, Halle (Saale)/Germany

Related articles:

Issue 9/2018 UNIVERSITY OF APPLIED SCIENCES NUREMBERG GEORG SIMON OHM

Improving the thermal insulation properties of thin-bed mortar|Part II: Effects of selected admixtures and combinations thereof on material properties, in particular pore-size distribution, thermal conductivity and compressive strength

1 Introduction and objectives The main objective of the subject research work was to develop a new type of thin-bed mortar characterized by reduced thermal conductivity with no loss of compressive...

more
Issue 10/2018 UNIVERSITY OF APPLIED SCIENCES NUREMBERG GEORG SIMON OHM

Effects of fumed silica on material engineering parameters of external rendering, with special emphasis on thermal conductivity and compressive strength

1 Introduction and objectives The main prerequisite for energy-efficient operation of residential and non-residential buildings is that they are appropriately insulated against heat loss. While...

more
Issue 4/2016 WUHAN UNIVERSITY OF TECHNOLOGY OFFICE OF REFORMATION OF WALL MATERIAL AND ENERGY-EFFICIENT BUILDING

Research on the interface and ­microstructure of thin layer mortar

1 Introduction Thin layer mortar has been mostly considered as a special mortar, which possesses high water-cement ratio and high area/volume ratio [1].The common problem of the thin layer mortar...

more
Issue 2015 Drymix EUAT-ULL/EUATM

Lapilli cement mortar lightened with ­treated expanded polystyrene beads

1 Introduction The Canary Islands present a special lithology – different from the rest of the Spanish mainland – as it is mainly characterized by volcanic materials and structures, forming a...

more
Issue 4/2018 ISLAMIC AZAD UNIVERSITY

Experimental study of the effect of water-to-cement ratio on various properties of nano silica concretes with polypropylene fibers

Flexural strength test machine

1 Introduction The use of various additives in concrete and cement products has attracted special attention in recent years. So far, many researches have been carried out on fiber concrete, but...

more
