Automation optimizes fuel supply

All Siemens

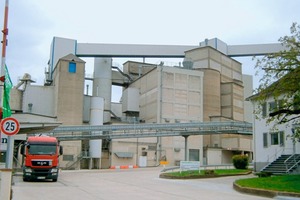

1 The “Atlas” cement plant in Paderborn has been producing cement since 1927. With new control technology, the plant is now saving a lot of energy while achieving consistent cement quality

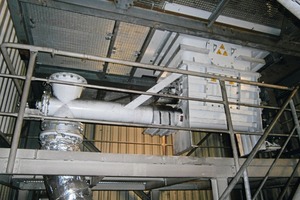

2 Loss-in-weight scales consist of a weigh bin with one or more load cells and a discharge element, in this case, for example, a screw conveyor

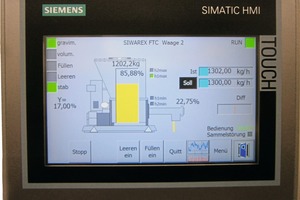

3 The touch panel in the control cabinet door for checking cement mixtures is not only used for visualization of measured values, but also enables operation of the loss-in-weight scales locally for maintenance work

4 The head of the electrical workshop checking the cement mixtures in front of the touch panel in the control cabinet door. Not only are measured values visualized here, but direct local operation of the loss-in-weight scales is also possible

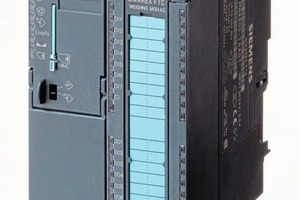

5 The Siwarex FTC weighing electronics (Siemens) measures the loss in weight during emptying of the weigh bin, i.e. it operates in the gravimetric mode. During filling, it automatically switches over to the volumetric mode

All Siemens

A large cement plant in Paderborn has a long tradition. Founded in 1926 as the Atlas plant, just three years later it became the largest cement plant in the region with eight shaft kilns and a daily clinker production of 800 tons. Under the ownership of Anneliese AG at the time, it was continuously expanded and later fundamentally modernized. Since 2005, it has been part of HeidelbergCement AG. To continue its success, a cement plant turned to modern weighing technology for its production processes.

1 Higher quality from the raw material to the cement

The Paderborn plant (Fig. 1) extracts approximately 80- to 100-million-year-old lime marl from a directly adjacent quarry as the raw material for cement production. This is crushed down to gravel size in crushing plants and then transported on conveyor belts to silos. When the material is discharged from the silos, the layers are thoroughly mixed by the action of the discharge scrapers. The crushed stone is then dried and ground in raw mills with the addition of aggregates such as limestone or sandy and clayey materials. The further...
