Flender One: the drive of the future
Flender has been building gear units for industrial applications for over a century. In the 1990s, the drive specialist redefined industrial gear units and set the global grey standard with the Flender gear unit. “We are now reinventing this standard,” said Andreas Evertz, CEO of the Flender Group, at the presentation of the successor Flender One at the Hannover Messe in April 2023.
Individual: on-point configuration for all requirements
Flender One’s approach is even more revolutionary than its predecessor, he says. “Flender One is not a series product, although it is manufactured in exactly the same way,” says Evertz. The secret behind it: maximum individuality and variability in the configuration and manufacture of the gear units. In most cases, different performance requirements, environmental conditions and installation positions make an individual gearbox solution necessary.
Flender engineers have succeeded in developing one of the world’s narrowest gear ratio ranges with 103 stages between 1 and 7.1 per size for applications that require particularly precise speed, such as pumps and paper machines. This allows the rotational speed to be set almost ideally for maximum efficiency in these applications. The deviation between the desired speed and the available technical solution is at the utmost of 1.5%. This gives customers the optimum speed for their plant. Like its predecessor, Flender One will be available in all required sizes and attachments for the industry. This means it can be used in all applications and can replace an existing predecessor gearbox one-to-one and in plug & play without any modifications.
On the way to the customized gearbox
The Flender One platform even goes one step further: In the future, further expansion stages will make it possible to configure gearboxes tailored to the respective application and the associated requirements. Despite maximum individuality, customers will benefit from the advantages of series production: Process efficiency in production and thus fast delivery times and low costs.
This is made possible by a real milestone in drive manufacturing: the complete digitization of the engineering process. It triggers the design precisely according to customer requirements and translates it into a fully automated manufacturing and delivery process.
Buying gearboxes made easy
A novelty in drive technology will also be the new product configurator. Customers will soon be able to configure their customized gear unit online with just three parameters: Application, power and speed. More detailed requirements can also be added. Within seconds, the 3D data and a 360-degree preview of the gear unit are available. Flender developed the configurator along the customers’ requirements. “We offer to take the time-consuming preliminary considerations off our customers’ hands. We no longer ask for the specifications and features of the gear unit, but only for the desired benefits. Customers tell us how and where they want to use the gear unit, and we guide them to the gear unit for their purpose,” says Dr. Jan Reimann, Flender One project manager.
Efficient: Saving raw materials, time and money with Flender One
Flender CEO Andreas Evertz came up with a surprising fact when presenting Flender One. Most industrial gearboxes from all manufacturers in the field, including Flender, are oversized by up to 50%, he said. “You don‘t think so? We can prove it, because we’ve been measuring it for years. Customers and gearbox manufacturers did not want to take a risk and bought large designs. With Flender One, we no longer need this oversizing,” says Evertz. With the help of the collected data, Flender is now able to size the gearboxes only as large as is needed for the respective application. Rouven Daniel, President Industrial Gears: “Efficiency is above all. Each gearbox is designed to meet individual requirements. The customer gets exactly what he needs – no less and especially no more.” The result is massive savings in raw materials, energy consumption, delivery times and installation space. Any waste is eliminated, which benefits the environment and the costs.
The new platform not only optimizes efficiency during planning, but also during operation. The optimized Metaperform® gearing reduces power loss by up to 50% compared with previous gear unit solutions. This is made possible by improved roll-off behavior and the even more uniform path of contact of the gearing. Together with the new overall gear unit design, this also increases the thermal capacity of Flender One. Features such as the concise cooling rib make additional, external cooling of the gearbox only necessary at a later stage or, depending on the application, completely unnecessary. This saves valuable energy and thus costs during operation.
Smart: the drivetrain becomes intelligent

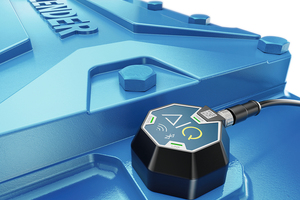

The digital enabler of all measurements and optimizations is Flender’s new gearbox intelligence AIQ. Its sensor technology and analysis functions continuously measure the torque and detect whether the gearbox and the plant are driven in overload or underload: the key to optimization and automation of the production processes and, moreover, to perfect design and dimensioning of the gearboxes for future plants. Thanks to AIQ, the gearbox becomes the central player in a constantly optimizing process that reduces CAPEX and OPEX and makes industrial production sustainable – thanks to raw material savings and more energy-efficient manufacturing processes.
The special feature of AIQ is the intelligence in the sensor. It not only records operating states, but also processes them directly, interprets them, and provides operators with recommendations for action – on site at the sensor, via app, or permanently in the customer’s own system. This offers operators many opportunities to increase the profitability of their plants. The detailed condition monitoring of the individual components detects deviations from the optimum at an early stage and enables the prediction of possible failures. Operators are thus able not only to control the drive and processes, but to optimize them. Precisely scheduled maintenance and reduced downtimes are the result.

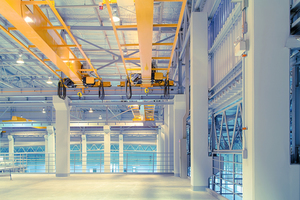

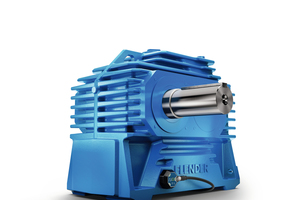

With the single-stage Flender One for paper and pump applications, Flender already introduced the first expansion stage to the market last fall. With the first multi-stage gearbox variants for overhead cranes, conveyor belts and bucket elevators, the next expansion stage will follow in the first half of 2024.
