FI20226072 A1
A sampling tool for sampling reburned lime from a lime kiln, and an apparatus and a method for determining amount of
residual carbonate in reburned lime sampled from a lime kiln
(22) 02.12.2022
(43) 03.06.2024

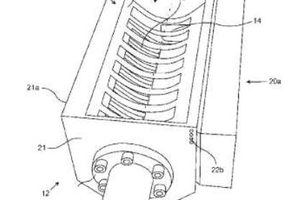

(57) The invention relates to a sampling tool (10) for sampling reburned lime from a lime kiln, comprising a holding device (11) for holding the sampling tool (10) in the lime kiln during the sampling, and a preparation compartment (12) having -a sample inlet (13) for receiving a sample from the lime kiln into the preparation compartment (12), -a sample outlet (14) for unloading the sample out from the preparation compartment (12), -a sieving arrangement (15) for limiting the particle size range of the sample. The invention relates also to an apparatus and method for determining amount of residual carbonate in reburned lime sampled from a lime kiln.
(71) Andritz OY (FI)
