Removal of blockages

Standard Industrie has used the experience gained from over 30 years in the field of solving blockages and its capacity for constant innovation to create the AIRCHOC® Wireless (Fig.), an air cannon power supply. The system is internationally ­patented. Designed to easily remove blocking and encrustation while avoiding the limitations imposed by a wired installation, the AIRCHOC® Wireless can be operated by remote control using a transmitter and a receiver. It is (re)charged with 2 batteries which are inside the receiver box. The key features are:

– Long distance transmission: With a 300 m-range up to 1 km in open spaces, the wireless system enables operation of the AIRCHOC® Wireless over large distances across any terrain and regardless of any obstacles.

– A single transmitter to control up to 128 AIRCHOC® wire
  less units: Installed in the control room, the trans­mitter can be connected to an automaton or to a computer in order to manage all the AIRCHOC® Wireless units from a ­single point.

– Control and switching off in complete safety: During the visits to the installation, the operator can switch off each AIRCHOC® Wireless by remote control. It enables him to intervene in complete safety.

– Inexpensive installation: The transmitter has a reduced cost and enables control of up to 128 AIRCHOC® Wireless. Moreover, thanks to the wireless technology, it is no longer necessary to purchase electric cables and cable trays, and therefore maintenance costs are saved.

Standard Industrie, 59054 ROUBAIX Cedex 1 (F),
Tel. +33 (0)3.20.28.32.32, info@standard-industrie.com

www.standard-industrie.com

Related articles:

Issue 11/2010

Removal of blockages

Standard Industrie has used the experience gained from over 30 years in the field of solving blockages and its capacity for constant innovation to create the AIRCHOC® Wireless (Fig.), an air cannon...

more
Issue 04/2011

78 GHz radar level transmitter

Siemens Industry Automation Division has launched the ­Sitrans LR560 (Fig.), the first radar level transmitter operating at 78 GHz frequency. The Sitrans LR560 is a non-contact 2-wire FMCW (Frequency...

more
Issue 3/2019 MARTIN ENGINEERING

High Temp Air Cannon installation & service without production shutdown

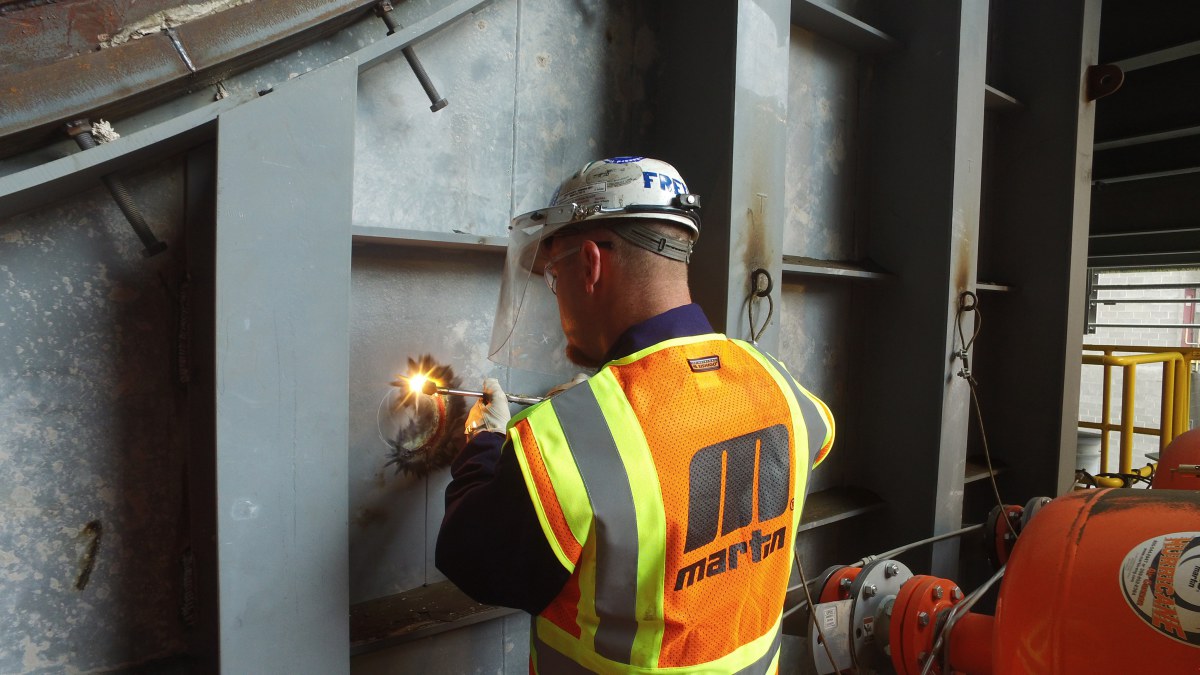

Technicians drill through the outer wall, then weld the Core Gate in place
