Through wild nature and populated regions

A traditional Chinese proverb says that the roads in Sichuan are hard, harder than climbing to heaven. Depending on the destination, there are rivers and valleys to be crossed and mountains to overcome. The southwestern Chinese province of Sichuan is the source of the majority of different ores in the country, such as titan, lithium and silver and plays a major role economically. The electronics, mechanical engineering, metallurgical, chemical, medical, food and building material industries are all pillars of the economy. One of the cement manufacturers in the region is Sichuan Yadong Cement Co, Ltd. located near Chengdu, the capital of Sichuan. The company is a member of the Asia Cement Group, headquartered in Taipeh/Taiwan.

In 2004, the company decided to build a new cement plant in Sichuan. During the development phase, the Asia Cement Group received approval from the Chinese government to use an abandoned railway to transport the limestone. Halfway through finishing the plant however, the government decided to build a new dam. The area intended for the transport was to be flooded, which would have changed the project conditions considerably: roads would be flooded and the trucks would have to take significant detours. The Asia Cement Group was also planning on building two additional kiln lines at this location. It was determined, as a time and cost efficient alternative, to install a troughed belt conveyor able to navigate horizontal and vertical curves. For this, the company turned to the Beumer Group. For many years now, Asia Cement has been relying on the system supplier’s expertise and are currently operating several of its bucket elevators.

1 Knowing what the customer wants

The Beumer Group took over the mechanical and electrical engineering and supplied the core components for the overland conveyor and monitored and commissioned its installation. The advantage: The Chinese subsidiary Beumer Machinery Shanghai can be reached easily and deployed quickly to site. “Our colleagues were able to work closely with the customer. They know the specific local customs, speak the language and are familiar with the particular market and customer requirements,” reports Dr. Andreas Echelmeyer, Director of Conveying and Loading Systems at the Beumer Group.

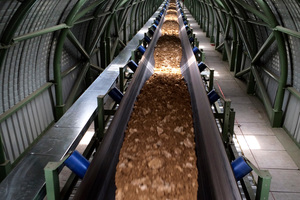

In May 2006, the Asia Cement Group awarded the contract for the 12.5 km long system. The overland conveyor can reach a mass flow of 1500 t/h and a conveying speed of four meters per second. “Compared to other conveying solutions, the open troughed belt conveyors are suitable for higher throughputs. Horizontal as well as vertical curve radii are possible,” explains Dr. Echelmeyer. They can be adapted to the specific task and topography. Using Beumer calculation programs, we can precisely calculate the static and dynamic tractive forces of the belt during the development phase of the system. This is a prerequisite for the safe dimensioning of horizontal curves. The type of drive technology and conveyor belts needed are based on these calculations. This ensures longevity of the entire system.

2 Mountains, soft grounds and extreme heights

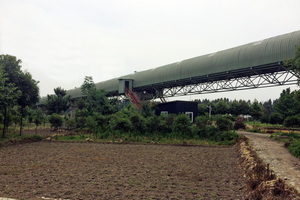

The terrain is hilly and covered with dense bamboo forest, parts of which are listed as nature reserve. For this reason, the government did not approve a service route nor deforestation. The ground also presented a major challenge for the Beumer Group engineers: “The ground is unstable due to previous coal mining. In other areas, the ground consists mostly of granite that could only be partially removed,” explains Dr. Echelmeyer. Another section of 1.5 km had to be guided across a river. These framework conditions contributed to the fact that 90 % of the system was installed manually on site. As it was impossible for trucks to transport the components, they were carried by mules, one part at a time, to the place of installation.

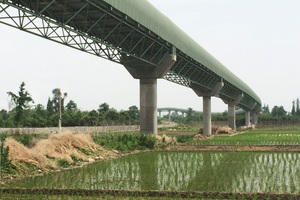

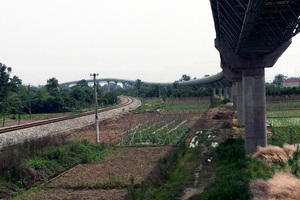

The route of the overland conveyor was coordinated between the Beumer Group and the cement manufacturer. The system supplier calculated the tractive forces of the belt considering the eight horizontal curves with radii of 1000 to 5000 m. The routing was checked for its feasibility on site. The complete route was checked by employees on foot, passing through rough terrain, in order to reliably check the predefined positions for the 460 supports for their suitability directly on site. Whenever technically possible, the routing of the conveyor was adapted to the topography. Height differences of up to 100 m had to be overcome within shortest distances, so several sections were equipped with bridges of up to 55 m. One section was realised with a 130 m long tunnel.

In close cooperation with the customer, the Beumer Group designed the overland conveyor and the bridges. The system supplier developed, built and supplied the core components for the drive and take-up station as well as the belt of an overall length of 25 km, the idlers and the drive technology. Since February 2009, the overland conveyor has been transporting bulk material from the quarry to the bulk loading system. Since commissioning of the first section, the mass flow of the conveyor was increased in two steps. Today, the system conveys a mass flow  of 2200 t/h at a conveying speed of 4.5 m per second.

3 The longest belt conveyor in company history

In July 2013, Asia Cement contracted the Beumer Group again for an additional, efficient overland conveyor to replace the trucks transporting the limestone from the bulk loading system to the cement plant. A mass flow of 2200 t/h of limestone was necessary to meet the plant’s requirements. For this project, the first conveyor was to be customised to these requirements. “We were planning a second troughed belt conveyor with an overall length of 13.7 km,” says Dr. Echel-meyer. This is the longest system in the history of Beumer.

Projects of that size are often unpredictable, so flexibility was needed from the engineers. During the planning phase, the cement manufacturer acquired another plant in Lanfeng, approximately ten kilometres away. “Now we had to design the system so that both plants could be supplied with limestone,” explains Dr. Echel-meyer. The team had to divide the overland conveyor into two parts. After 5.4 km, an additional conveyor can be added to be fed to Lanfeng in the future. In February 2015, the system supplier started with the installation of the conveyor frame.

Both overland conveyors have four horizontal curves with radii of 1200, 1500 and 1800 m. “We provided the engineering and the individual parts such as pulleys, motors, drive and control technology and the entire automation,” describes Dr. Echelmeyer. The installation was monitored by a Beumer Group supervisor and the wiring of the system was supported by a Beumer electrical engineer. The system supplier was also in charge of the commissioning in May 2016. The troughed belt conveyor is now supplying three kiln lines, a fourth line is planned.

4 Reaching the destination – no longer through rough terrain, and quiet

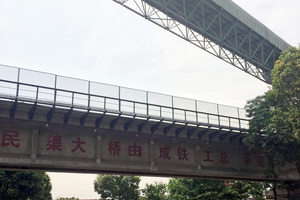

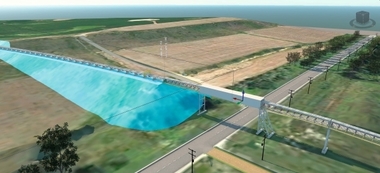

The requirements were different for the two projects: the challenges for the first project were the hilly terrain, instable grounds and crossing through conservation areas and over waterways, for the second project the system had to be built crossing through populated areas. The Chinese government has set out exact regulations on the noise emission levels so that the residents would not be impacted. “We had to minimize the noise to an extremely low level,” describes Dr. Echelmeyer. The system supplier took several constructive measures in order to reduce the noise emissions. “We used noise-reducing idlers and customised protective covers on the drive stations,” explains Dr. Echelmeyer. In collaboration with the operator, the Beumer Group optimised the conveyor frame and the completely enclosed conveyor bridge.

For the whole project, the Beumer Group was able to ensure that the limestone is transported safely and quietly, without disturbing the residents or disrupting the surrounding nature.
