LINDNER ATLAS DAY 2019

The fast exchange system in Lindner’s next generation Atlas attracted
considerable international interest

The Austrian specialist in shredding technology and system solutions for waste processing invited guests to the Lindner Atlas Day on the scenic Lake Wörthersee on 01.10.2019 to present the eponymous next generation twin-shaft primary shredder for automated 24/7 operation.

More than 120 participants from all over the world, including countries such as Brazil, Morocco, Russia, China and Japan, accepted Lindner’s invitation to Klagenfurt/Austria. The guests represented the who’s who of the international recycling industry discussing recycling rates, valuable recyclables, waste streams and efficient processing technology. But the day’s hot topic was ideal sortability and the primary shredding of waste that’s necessary to make this possible.

“At the moment, everything is heading towards a circular economy. Our diverse, international audience is proof that this trend is not only emerging in Europe, but all over the globe. In addition to the steadily increased recycling rates set by the EU, the 180 countries adhering to the Basel Convention, which governs the export and disposal of hazardous waste, have also decided to include plastic in the list of waste requiring ‘special consideration’,” explained Stefan Scheiflinger-Ehrenwerth, Head of Product Management at Lindner Recyclingtech. These developments call for new technologies that will make it possible to cope with the ever-growing amounts of waste and to process them efficiently. To achieve this goal, Lindner’s design team focused on successfully combining the following three aspects in the Atlas shredder: ideal output size and chunkiness for subsequent sorting processes with high energy efficiency and 24/7 operation.

24/7 operation combined with minimum downtimes

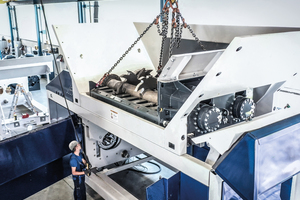

New to the latest Atlas generation is the FX fast exchange system. For maintenance with minimum downtime, the entire cutting system can be completely exchanged in under an hour. Thanks to a second cutting unit, made up of a shaft pair and cutting table, it is possible to keep up production while, for example, welding work is carried out on the rippers.

Designed with automation in mind

In waste processing, the trend is clearly towards automation. However, robots and separation technologies such as NIR sorting require uniformly flowing material – in terms of both flow rate and particle size – in order to be productive. Scheiflinger-Ehrenwerth explained: “Our tests have shown that materials shredded to the size of an A4 sheet and with a low fines content are ideal for preventing as many picking errors as possible in subsequent automatic sorting processes. The Atlas ripping cutting system is simply tailor-made for that. Even collection bags for plastic waste can be ripped open easily without shredding the contents. Due to asynchronous shaft operation, where the shafts shred effectively in both directions of rotation, we additionally achieve a constant material output of approx. 40 to 50 metric tons per hour. This means that the shredder continually delivers enough material to the conveyor belt to be perfect for productive sorting.”

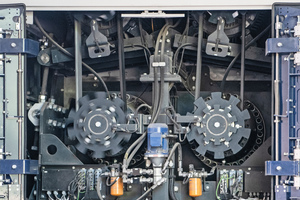

This performance is only possible thanks to the specifically engineered drive concept: the Atlas 5500 is equipped with a purely electromechanical belt drive. The intelligent DEX (Dynamic Energy Exchange) energy management system ensures that the system always runs at the optimum operating point and that the shafts change direction up to three times faster than in conventional drives. This is particularly important when shredding tough or wet and heavy materials. Furthermore, the kinetic energy generated by one of the shafts while braking is recovered and made available to the second shaft. This results in the drive unit consuming 40 % less energy, which makes the shredder magnificently efficient.

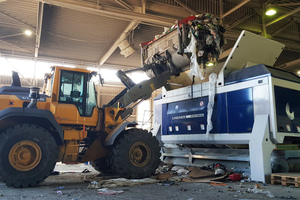

In addition, Lindner made sure that operating the shredder is easier than ever before by introducing a completely new control concept. In future this will be standard in all new Lindner machines. “It’s getting more and more difficult to find skilled staff, and not only in our industry. For the new Lindner Mobile HMI, we redesigned the entire navigation menu and tested it with completely untrained people until all functions relevant for controlling the machine were self-explanatory. What’s more, in standard operation it’s possible to control the shredder directly from the wheel loader by remote,” concluded Scheiflinger-Ehrenwerth and added: “In addition to our other modernisations, we received particularly positive feedback for this innovative feature. With the latest Atlas Series, we are truly moving in the right direction.”

//www.lindner.com" target="_blank" >www.lindner.com:www.lindner.com
