Fabrication of immersion tube with shackle for cement rotary kiln

(22) 24.02.2018

(43) 20.09.2018

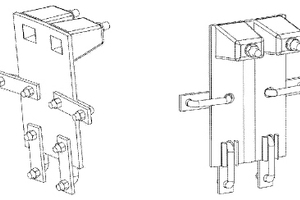

(57) The Immersion tube with a shackle for cement kiln comprises refractory upper segment along with hanger parts; refractory hanger; refractory intermediate segment; refractory lower segment; refractory holder connections. The refractory holder connection is composed of a refractory shackle, refractory countersunk bolt, and refractory fish plate strap.

(71) Mofazali, Abbas, Unit 4 - Arman Building - Bazarcheh Alley - Shahrzad (No. 20) Alley - Enghelab Eslami Ave - MalekShahr, Isfahan, 8174737611 (IR)

84) ARIPO (BW, GH, GM, KE, LR, LS, MW, MZ, NA, RW, SD, SL, ST, SZ, TZ, UG, ZM, ZW), Eurasian (AM, AZ, BY, KG, KZ, RU, TJ, TM), European (AL, AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HR, HU, IE, IS, IT, LT, LU, LV, MC, MK, MT, NL, NO, PL, PT, RO, RS, SE, SI, SK, SM, TR), OAPI (BF, BJ, CF, CG, CI, CM, GA, GN, GQ, GW, KM, ML, MR, NE, SN, TD, TG)
