EP 2 868 635 A1

Cement clinker cooler and method for cooling cement clinker

(22) 29.10.2013

(43) 06.05.2015

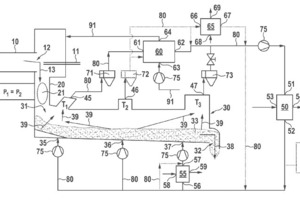

(57) White cement clinker can be ­efficiently produced using a kiln 10 for sintering cement clinker and ­unloading the cement clinker from the kiln 10 to a clinker cooler 30 for ex-changing thermal energy between the hot clinker 33 and a gaseous coolant by subjecting the clinker 33 to a flow of said gaseous coolant to thereby cool the clinker 33 and in return heat the gaseous coolant, if the gaseous coolant has an oxygen content smaller than 2.5 % and if at least a part of the heated coolant is provided from the clinker cooler 30 to at least one heat exchanger 60 to transfer thermal energy from the heated coolant to the combustion gas and thereby preheat the combustion gas and in return cool the coolant. Thereby preheated combustion gas can be provided to the kiln 10, saving energy.

(71) Alite GmbH, 31535 Neustadt (DE)

(84) European (AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR), Designated Extension States: BA ME

x

Related articles:

Issue 4/2016 US 2016/0046525 A1

Plant for producing cement clinker with gasification reactor for difficult fuels

(22) 04.04.2014 (43) 18.02.2016 (57) A plant for producing cement clinker, comprising as viewed in the direction of materials flow, a heat exchanger to preheat raw meal, a downstream calciner to...

more
Issue 08/2024 WO 2024/179118 A1

Oxygen-fuel combustion clinker-cooler air supply system

(22) 11.12.2023 (43) 06.09.2024 (57) An oxygen-fuel combustion clinker-cooler air supply system. The air supply system comprises a clinker cooler (1), a kiln tail system (11), an oxygen generation...

more
Issue 03/2024 VDZ

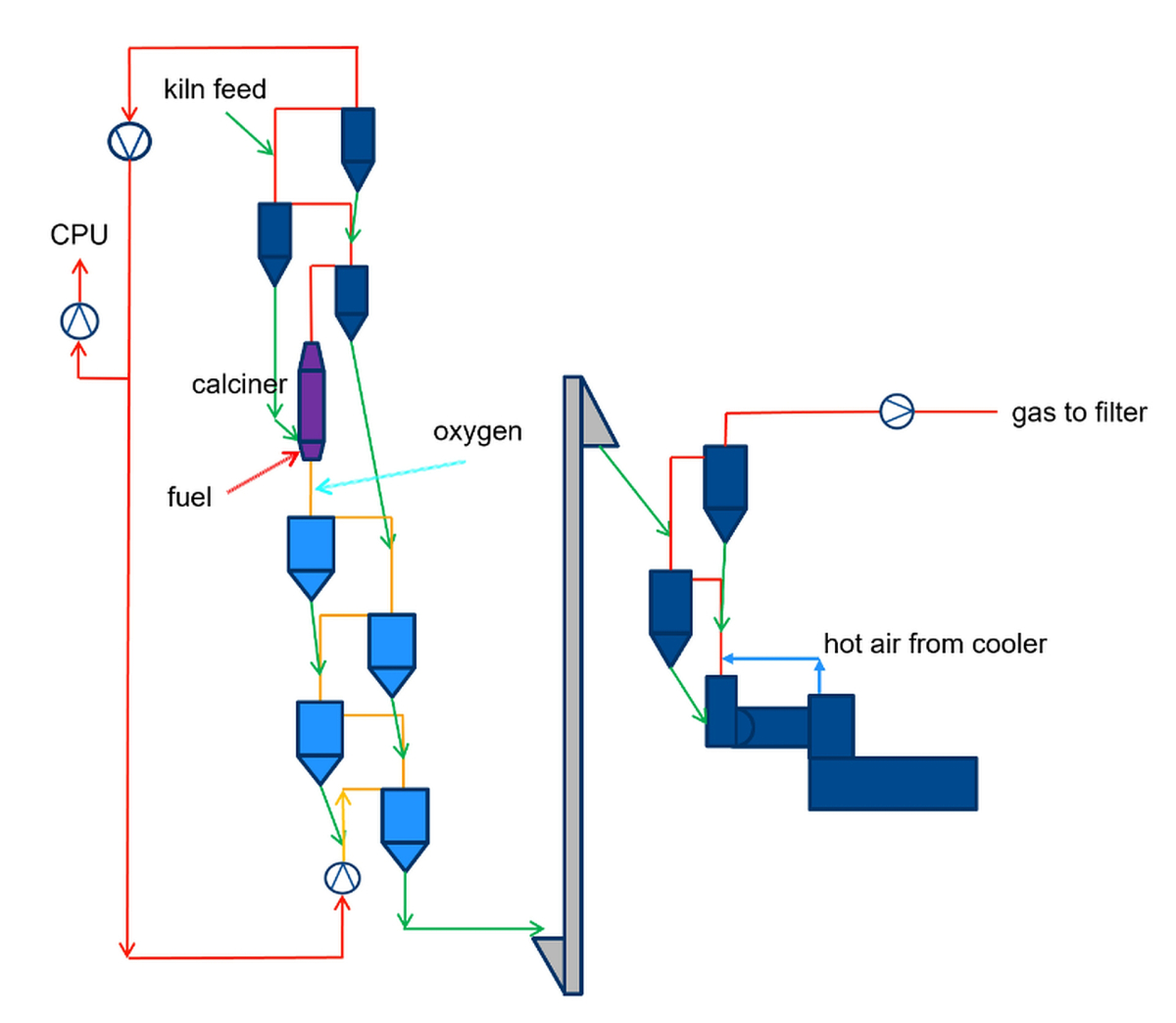

Partial oxyfuel – Separate calcination of raw meal to concentrate CO2 in the exhaust gas

The capture of CO? and its subsequent use and storage are key elements of the cement industry‘s decarbonisation strategy. The separation of CO? from waste gas is an energy-intensive and complex...

more
Issue 1/2024 US 2023/0365464 A1

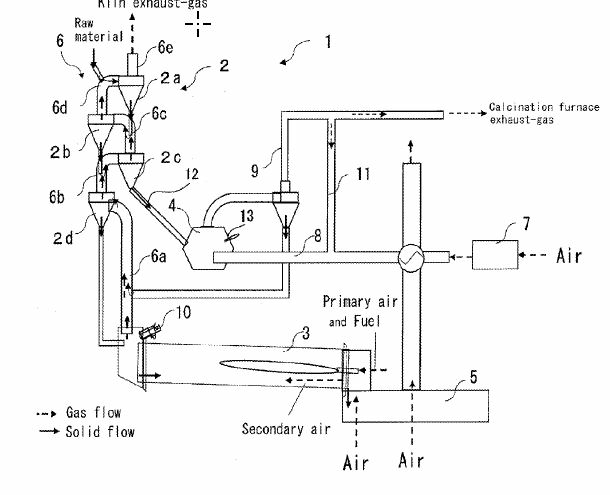

Cement clinker production system and cement clinker production method
