SMC PNEUMATIK

New, flexible dust filter valves

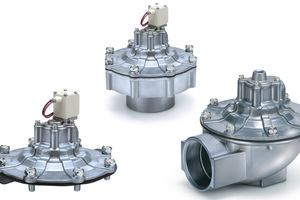

The newly dust filter valves from SMC Pneumatik are extremely flexible and can be used in any type of dust filter system and in any size of industrial unit

SMC Pneumatik in Egelsbach, near Frankfurt/Germany, has optimized its series VXF dust filter valves designed as 2/2-way solenoid valves and as pneumatically actuated valves. With numerous connection sizes from 3/4” to 4”, the series VXF has now also been made suitable for large piston diameters. Numerous types of connection are available, such as a threaded end that can be directly connected to a pipe, and a flanged version for direct connection to a container.

Thanks to the double diaphragm structure for pilot valve and main valve, response times are short. The nominal diameters of between 22...
