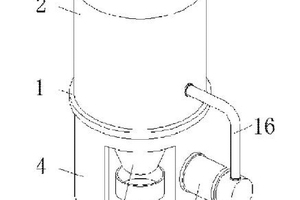

Drying device for cement processing

(22) 16.08.2021

(43) 05.05.2022

(57) Disclosed in the present utility model is a drying device for cement processing. The drying device comprises a support seat; a drying main body is fixedly mounted on an upper end of the support seat; a crushing motor is fixedly mounted on an  upper end of the drying main body; a support leg is fixedly mounted on a lower end of the support base; a gap is fixedly provided at a front end of the support leg; a discharging hopper is fixedly mounted on a lower end of the drying main body; a lower end of the discharging hopper passes through the support seat and extends to the inner side of the support leg; the upper end of the drying main body is located on the right side of the crushing motor and a feeding port is fixedly mounted thereon; a lower end of the feeding port passes through the drying main body and extends to the interior of the drying main body; a feeding hopper is fixedly provided on an upper portion of the interior of the drying main body; and the feeding port fixedly communicates with the feeding hopper. The drying device for cement processing can cool and blow dried materials to prevent the stacking of cement materials with hot and humid air, thereby causing moisture regain.

(71) Jiangsu Jinengda Environment Energy Science and Technology Co., Ltd, Jiangsu (CN)
