Cement kiln burner device and method for operating the same

(22) 26.09.2018

(43) 22.07.2021

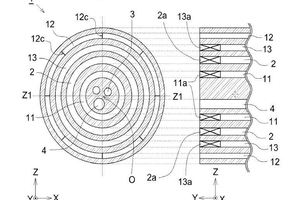

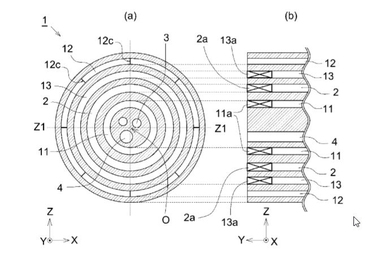

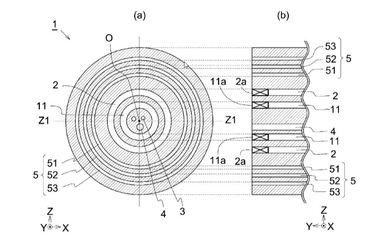

(57) There are provided a cement kiln burner device capable of intensively bringing a combustible solid waste into a floating state within a cement kiln and easily causing ignition of the combustible solid waste in the floating state, and a method for operating the same. According to the present invention, there are provided: a powdered-solid-fuel flow channel including means for swirling a powdered-solid-fuel flow; a first air flow channel placed inside the powdered-solid-fuel flow channel to be adjacent to the powdered-solid-fuel flow channel, the first air flow channel including means for swirling an air flow; a second air flow channel placed in an outermost side outside the powdered-solid-fuel flow channel, the second air flow channel including means for straightly forwarding an air flow; and a combustible-solid-waste flow channel placed inside the first air flow channel. The second air flow channel is divided in a circumferential direction into four or more opening portions adapted to form ports for injecting air flows, and is configured to control flow rates of the air flows ejected from the opening portions, independently for each opening portion.

(71) Taiheiyo Cement Corporation, Tokyo (JP)
