WO 2023/098567 A1

Titanium composite corundum silicon carbide wear-resistant castable material for kiln outlet of cement kiln, and preparation method therefor

(22) 24.11.2022

(43) 08.06.2023

(57) Provided in the present disclosure are a titanium composite corundum silicon carbide wear-resistant castable material for a kiln outlet of a cement kiln, and a preparation method therefor. The titanium composite corundum silicon carbide wear-resistant castable material is mainly composed of the following raw materials in percentages by mass: 15%-20% of 3-5 mm fused white corundum, 15%-25% of 1-3 nun fused white corundum, 15%-25% of 0-1 mm fused white corundum, 2%-8% of 1-3 mm 97 silicon carbide, 5%-10% of 0-1 min 97 silicon carbide, 2%-8% of a 200-mesh 97 silicon carbide, 5%-15% of 0-1 nun titanium-reinforced corundum-based refractory material, 10%-20% of a 200-mesh titanium-reinforced corundum-based refractory material, 5%-10% of an activated aluminum oxide powder, and 5%-8% of an aluminate cement. The product prepared by means of the present disclosure has excellent wear resistance, is applicable to the kiln outlet portion of a cement kiln, can effectively prolong the safe operation period of a rotary cement kiln, and increases the yield and decreases the consumption for cement enterprises.

(71) Tongda Refractory Technologies Co., Ltd., Beijing 100082 (CN); Gongyi Tongda Zhongyuan Refractory Technologies Co., Ltd., Henan 451261 (CN)

x

Related articles:

Issue 10/2020 WO 2020/109199 A1

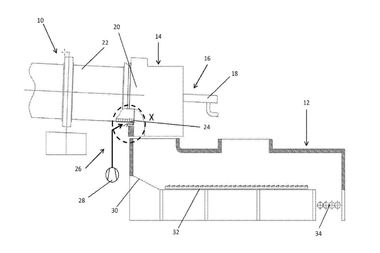

Kiln comprising a protective segment at the kiln outlet

(22) 25.11.2019 (43) 04.06.2020 (57) The invention relates to a kiln (10) for firing cement clinker, comprising: a tubular rotary drum (22), which can be rotated about its central axis, wherein the...

more
Issue 2/2022 US 2022/0018599 A1

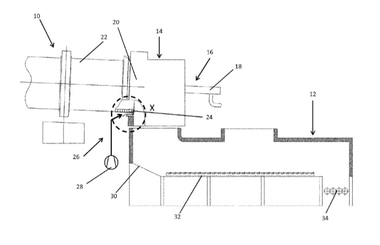

Kiln comprising a protective segment at the kiln outlet

(22) 16.09.2021 (43) 25.11.2019 (57) A kiln for firing cement clinker may include a tubular rotary drum that can be rotated about its central axis. The tubular rotary drum may have a discharge end at...

more
Issue 3/2021 MASCHINENFABRIK GUSTAV EIRICH GMBH & CO KG

Refractory company in Taiwan decides to use mixing technology from Eirich

There are a large number of companies worldwide that manufacture refractory products and offer kiln linings, e.g. for the production of aluminum, iron and steel, glass, ceramics or cement. Standards...

more
Issue 1/2021 WO 2020/240102 A1

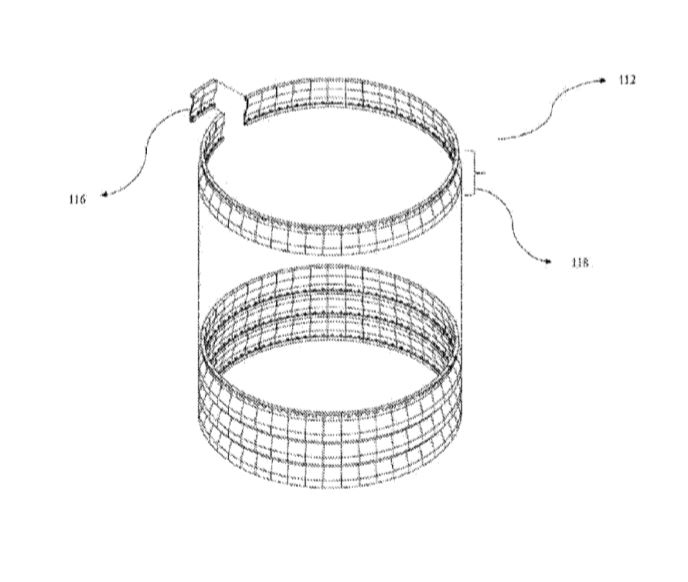

Cyclone preheater vortex detector for the cement industry, based on sintered silicon carbide
