Lime tumor crushing device for lime kiln

(22) 26.08.2022

(43) 01.11.2022

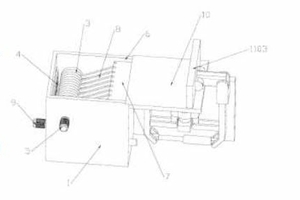

(57) The invention discloses a lime tumor crushing device for a lime kiln, and belongs to the technical field of lime tumor treatment, the lime tumor crushing device comprises a shell, a rotating shaft is arranged in the shell, a first motor for driving is arranged at one end of the rotating shaft, a plurality of moving cutters are arranged on the rotating shaft at equal intervals, fixed cutters matched with the moving cutters are arranged on one side of the inner wall of the shell, and an opening is formed in the other side of the inner wall of the shell; an opening is formed in the shell, an adjusting mechanism for adjusting the inclination angle of the grid section is arranged in the opening, the grid section is mounted on the adjusting mechanism, the other end of the grid section is movably connected with the rotating shaft, a crushing mechanism is arranged below the grid section in the shell, and a pushing mechanism is arranged on one side, close to the opening, of the shell; according to the invention, the inclination angle of the grid section can be adjusted through the arranged adjusting mechanism, and the falling amount of lime nodules can be controlled through the arranged material pushing mechanism, so that the phenomenon of material blockage when the lime nodules are treated by the lime nodule crushing machine is reduced, and the occurrence of machine faults is reduced.

(71) Yangzhou Taihong Conveying Machinery Co. Ltd.
