Closed belt conveying device for cement raw materials
(22) 19.01.2024
(43) 23.02.2024

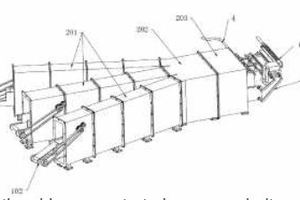

(57) The invention discloses a closed belt conveying device for cement raw materials, and relates to the technical field of cement raw material conveying.Comprising a middle concentrated conveyor belt, at least one side concentrated conveyor belt is symmetrically arranged on two sides of the middle concentrated conveyor belt, a bypass conveyor belt is arranged at the top of the side concentrated conveyor belt, and a guide assembly is arranged between the bypass conveyor belt and the side concentrated conveyor belt; a plurality of mutually connected first sealing covers are arranged on the outer sides of the bypass conveying belt and the middle concentrated conveying belt, and second sealing covers are connected to the side faces of the first sealing covers. According to the closed type belt conveying device for the cement raw materials, three material conveying output sides are combined, the occupied area of the whole conveying mechanism can be effectively reduced, the conveying belts of the closed type belt conveying device are closed through the closed covers, dust diffusion can be effectively prevented when the cement raw materials are conveyed, and the conveying efficiency is improved. The environmental pollution is reduced.
(71) Yunnan Southwest Cement Co Ltd; Yunnan Puer Southwest Cement Co. Ltd.
