Computational Fluid Dynamics for fans and plants – Part 1

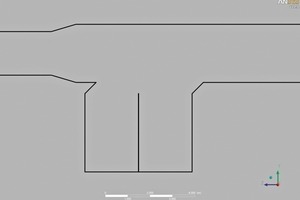

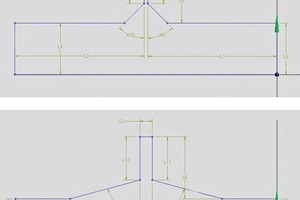

1 Parameterized layout with modification

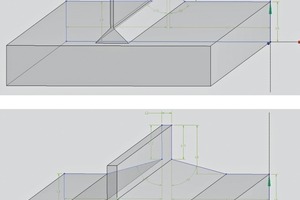

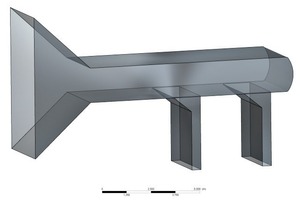

2 Adapted 3D models

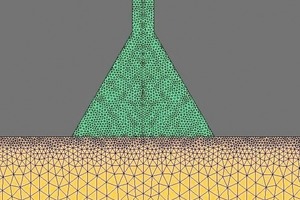

3 Unstructured computational mesh

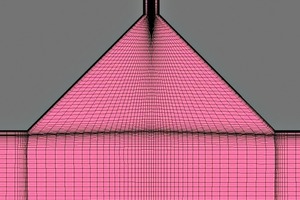

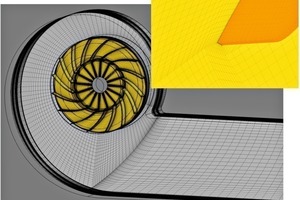

4 Block-structured hexahedral mesh

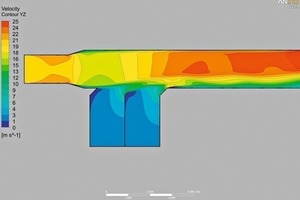

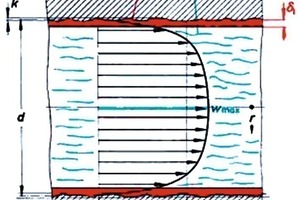

5 Flow profile

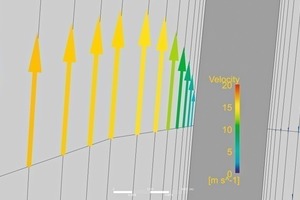

6 Boundary layer discretization with vector arrows

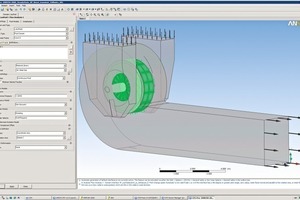

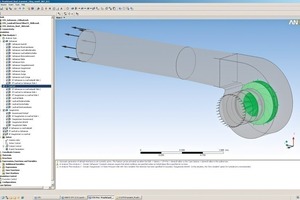

7 ANSYS CFX-Pre

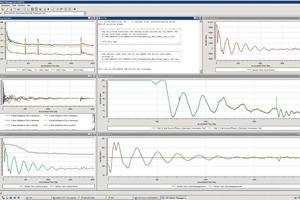

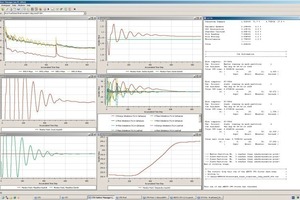

8 ANSYS CFX Solver

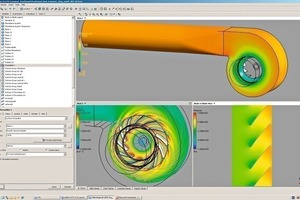

9 ANSYS CFX Post

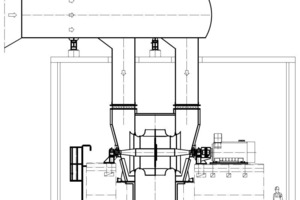

17 System arrangement drawing with induced draught fan

18 3D-Modell des Saugzuges

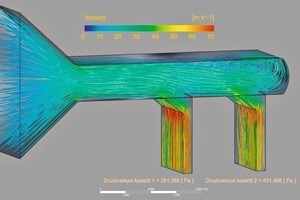

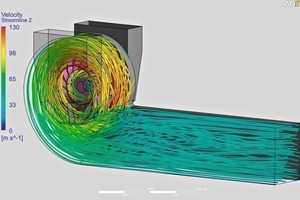

19 Flow lines

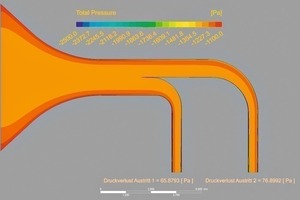

20 Total pressure profile with original design

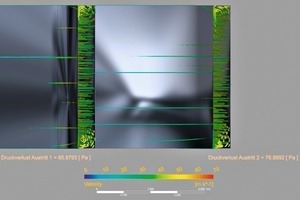

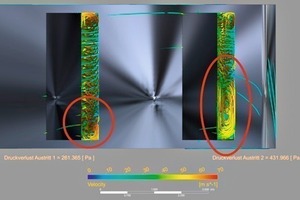

21 Strong swirl with original design

22 Total pressure profile after optimizing design

23 Swirl after optimizing design

24 Flow lines of original design

25 Flow lines of optimized design

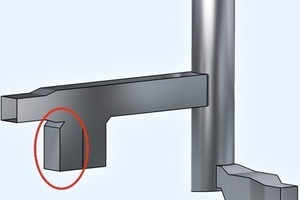

10 Stack geometry with marked problem zone

11 Velocity distribution in stack

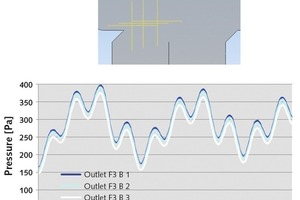

12 Pressure pattern at measuring points

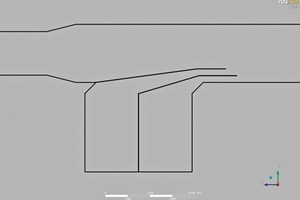

13 Original geometry

14 Duct with baffle plates

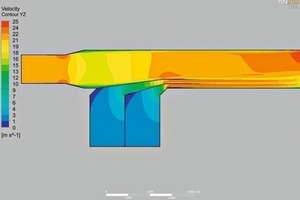

15 Velocity with optimized geometry

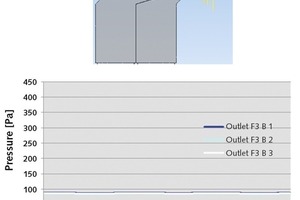

16 Pressure gradient with baffle plates

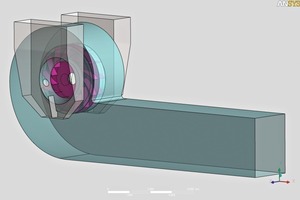

26 Geometry DHRV 50B-2000

27 Mesh of DHRV 50B-2000 with detail of leading edges of impeller blades

28 Specification of the boundary conditions

29 Solution of the differential equations

30 Flow line diagram

Visit the Special Fans Site at www.zkg.de/fans

Summary: In the field of turbomachinery construction, CFD has, within the space of just a few years, become an indispensable tool for the optimization and new design of turbomachines, as well as for the elimination of fluid-mechanic problems in installed systems. The following paper demonstrates the basic knowledge as well as applied examples of the CFD simulations of process fans.

1 Introduction

Computational Fluid Dynamics (CFD) is a method that is used for the computerized calculation of technical flows with state-of-the-art accuracy. With this method, it is possible to make far more precise statements regarding the behaviour of a technical or natural flow than could be made on the basis of classical partly-empirical, test-based approaches. CFD has been employed on an economic scale since around 1973, when it was first applied in the aircraft construction sector. The underlying partial differential equations according to Navier-Stokes, which precisely describe the flow...
